LA270130 THREAD SUPPORT UNIT ASSY*****


LA270130 THREAD SUPPORT UNIT ASSY*****

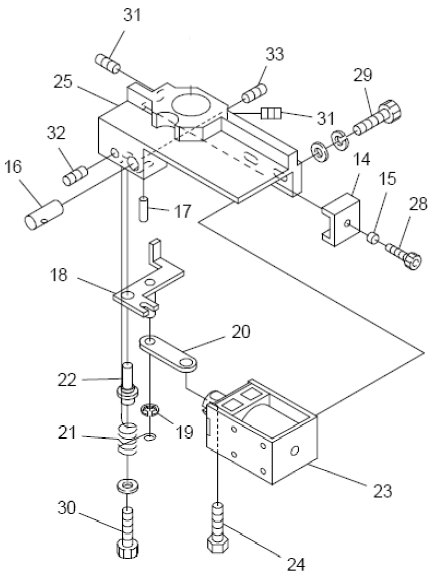

LA270130 THREAD SUPPORT UNIT ASSY (discontinued. Also known as KX270340)

 Previous  Up  Next

NOTE: THIS PART HAS BEEN DISCONTINUED. However, many of the components can be ordered individually.


Qty  Item   Part Number  Description
 1  14  HT230520    Needle Bar Driver Stopper
 1  15  A9012368  Spacer (Bushing)
 1  16  KX270360  Thread Support Push Rod
 1  17  KX270320  Thread Support Push Pin
 1  18  LA270090  Thread Support Lever
 1  19  A9012127  E-Ring (Ø3)
 1  20  KX270310  Thread Support Link
 1  21  KX270350  Thread Support Return Spring
 1  22  KX270300  Thread Support Lever Pin
 1  23  A9056037  Thread Keep Solenoid
 1    KC270101  Solenoid Pin
 1  25  LA270070  Thread Support Base
 1  28  A1CB10306E0Z  Hex. Socket Bolt M3x6
 1  29  A1CB10308E0Z  Hex. Socket Bolt M3x8
 4  30  A1CB10306E0Z  Hex. Socket Bolt M3x6
 1     P661041  Hex. Socket Set Screw M5x8
 4    A3PW1030605A  Hex. Socket Set Screw M4x4
 4    P840518  Hex. Socket Set Screw M3x6








P840518 M3 LOCK WASHER SPLIT, BLACK
P840518 M3 LOCK WASHER SPLIT, BLACK 		A1CB10306E0Z - M3x6 HEX SOCKET BOLT
A1CB10306D2Z - M3x6 LOW HEAD HEX SCREW BLACK OXIDE [A15443]*** 		A1CB10308E0Z - M3x8 HEX SOCKET BOLT
A1CB10308E0Z - M3x8 HEX SOCKET BOLT 		A3PW1030605A - M3x6x0.5 FLAT WASHER
A3PW1030605A - M3x6x0.5 FLAT WASHER (now A3PW1030605V)
A9012127 RETAINING RING (E TYPE) 3MM
A9012127 RETAINING RING (E TYPE) 3MM 		A9012368 SPACER (3X4X2.5L)
A9012368 SPACER (3X4X2.5L) 		A9056037 KEEP SOLENOID TDS-K10SL W/COVER
A9056037 KEEP SOLENOID TDS-K10SL W/COVER 		HT230520 NEEDLE BAR DRIVING STOPPER
HT230520 NEEDLE BAR DRIVING STOPPER
KX270300 THREAD KEEP LEVER PIN
KX270300 THREAD KEEP LEVER PIN 		KX270310 THREAD KEEP LINK
KX270310 THREAD KEEP LINK 		KX270320 THREAD KEEP PUSH PIN
KX270320 THREAD KEEP PUSH PIN 		KX270350 THREAD KEEP RETURN SPRING ZN
KX270350 THREAD KEEP RETURN SPRING ZN
KX270360 THREAD KEEP PUSH ROD
KX270360 THREAD KEEP PUSH ROD 		LA270070 THREAD KEEP SUPPORT BASE (ZN/ZQ)
LA270070 THREAD KEEP SUPPORT BASE (ZN/ZQ) 		LA270090 THREAD SUPPORT LEVER ***
LA270090 THREAD SUPPORT LEVER *** 		P661041 M4X4 HEX SOC SET SCREW (MKSF12)
P661041 M4X4 HEX SOC SET SCREW (MKSF12)
